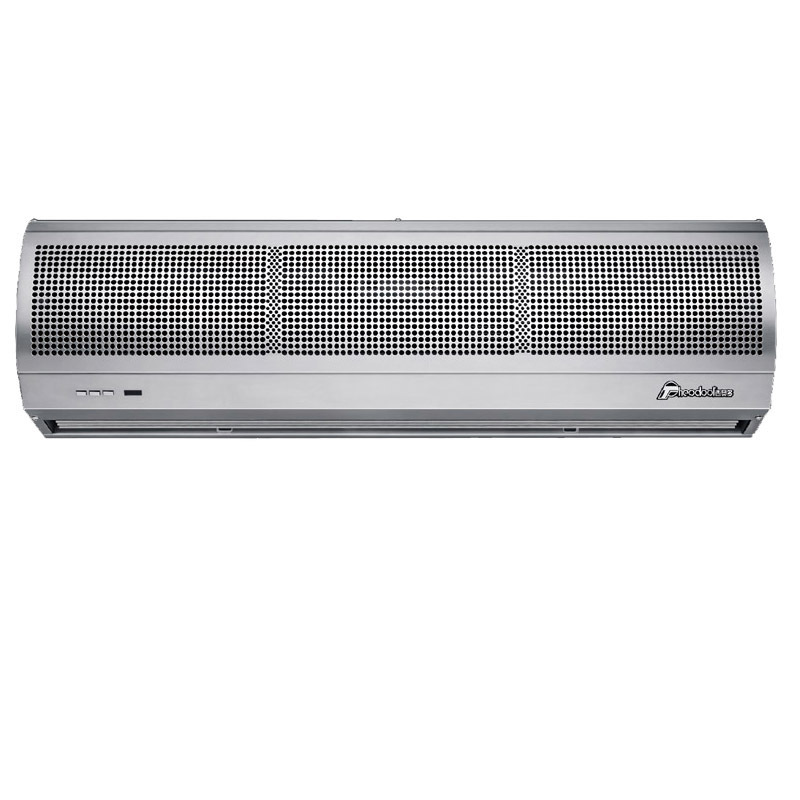

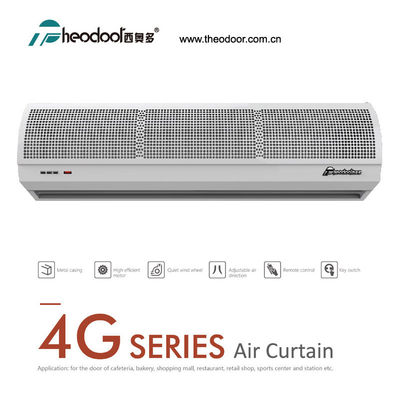

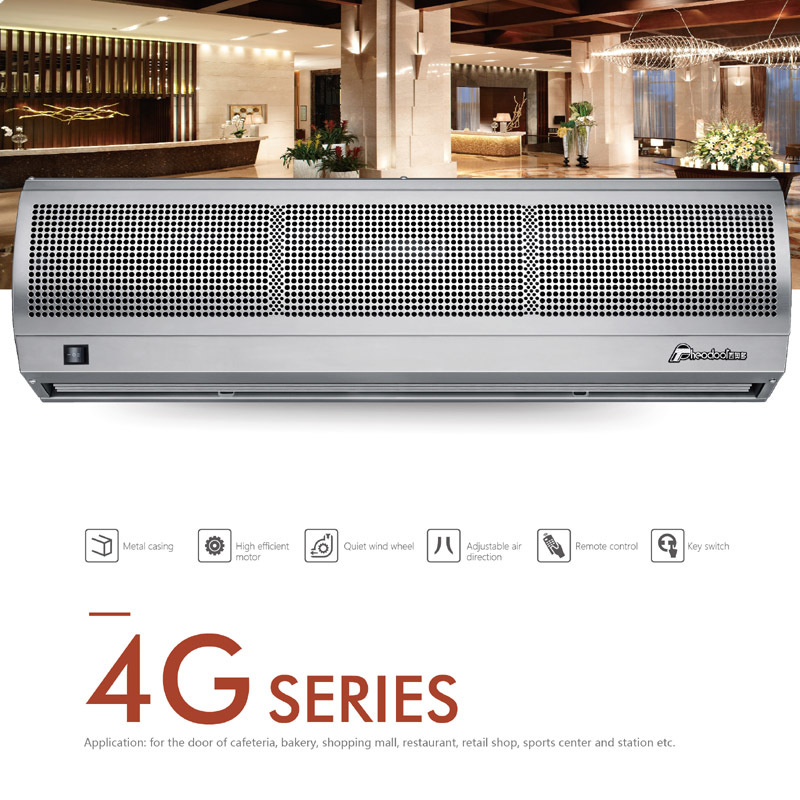

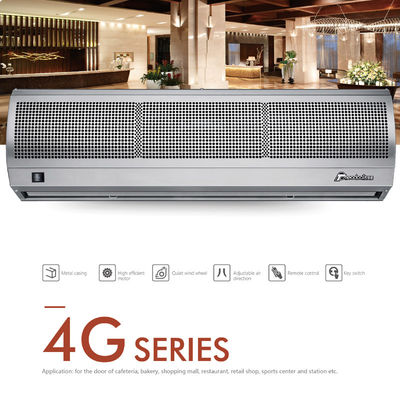

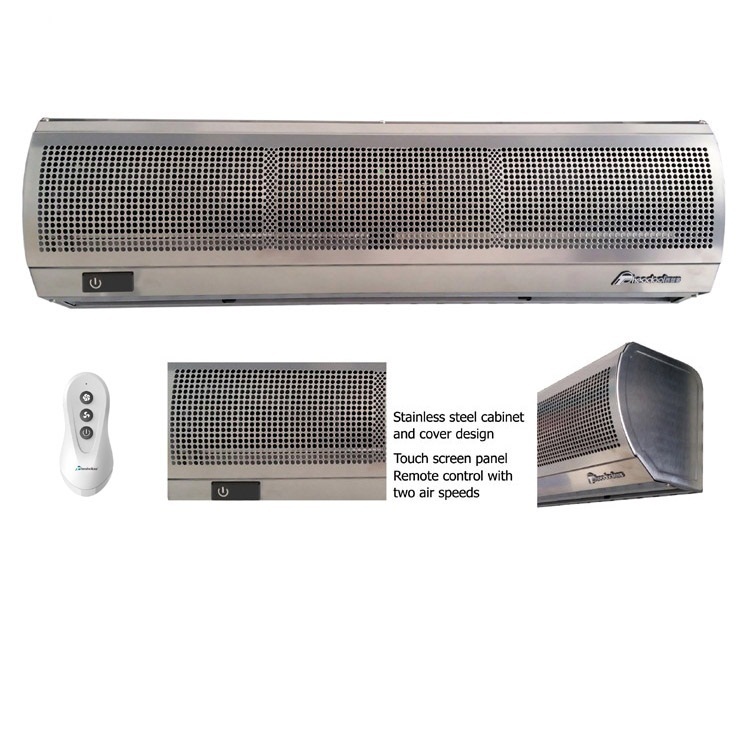

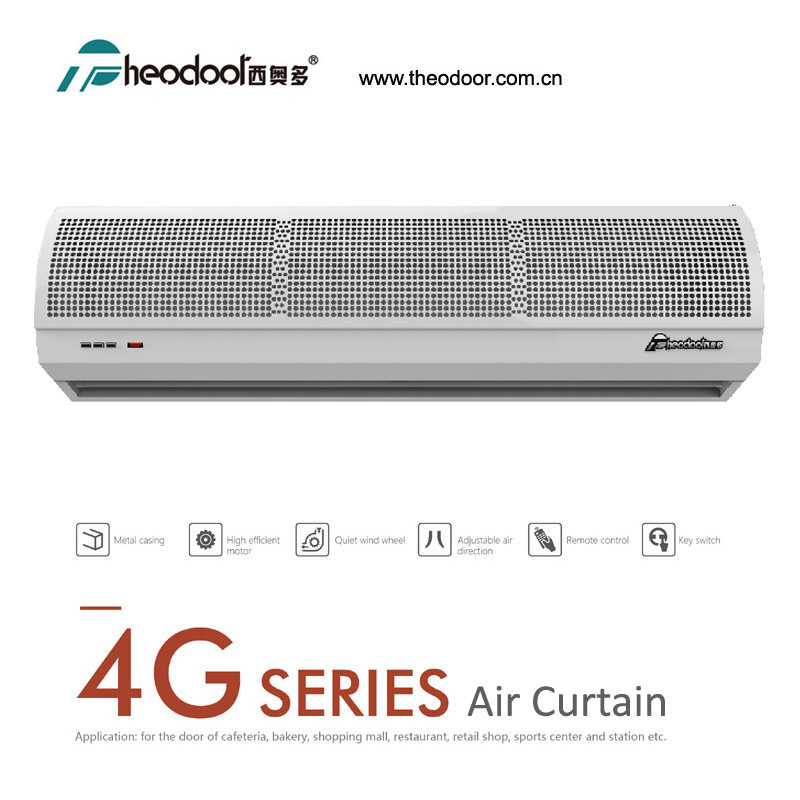

Indoor Air Conditioning Equipment Cross Flow Type SS304 Air Strip Hanging Door Curtain designed for commercial applications.
Ideal for doors of cafeterias, bakeries, shopping malls, restaurants, retail shops, sports centers, and stations.
Model | Volt/Frequency (v/hz) | Size (mm) | Length (mm) | Air Velocity (m/s) | Air Volume (m3/h) | Noise (dB) | Power (w) | Net Weight |
---|---|---|---|---|---|---|---|---|
FM-1209S2 | 220v/50-60hz | 900x190x230 | 900 | 9-11 | 1400 | 55 | 160 | 10.5 |
FM-1210S2 | 220v/50-60hz | 1000x190x230 | 1000 | 9-11 | 1600 | 56 | 180 | 11 |
FM-1212S2 | 220v/50-60hz | 1200x190x230 | 1200 | 9-11 | 1900 | 56 | 190 | 13.5 |
FM-1215S2 | 220v/50-60hz | 1500x190x230 | 1500 | 9-11 | 2500 | 57 | 230 | 16.5 |
FM-1218S2 | 220v/50-60hz | 1800x190x230 | 1800 | 9-11 | 3200 | 58 | 300 | 19.5 |
FM-1220S2 | 220v/50-60hz | 2000x190x230 | 2000 | 9-11 | 3600 | 59 | 350 | 22.5 |
FM-1509S2 | 220v/50-60hz | 900x219x263 | 900 | 9-13 | 2000 | 67 | 230 | 15 |
FM-1512S2 | 220v/50-60hz | 1200x219x263 | 1200 | 9-13 | 2800 | 69 | 350 | 19 |
FM-1515S2 | 220v/50-60hz | 1500x219x263 | 1500 | 9-13 | 3600 | 71 | 430 | 23 |
FM-1518S2 | 220v/50-60hz | 1800x219x263 | 1800 | 9-13 | 4400 | 73 | 450 | 27 |

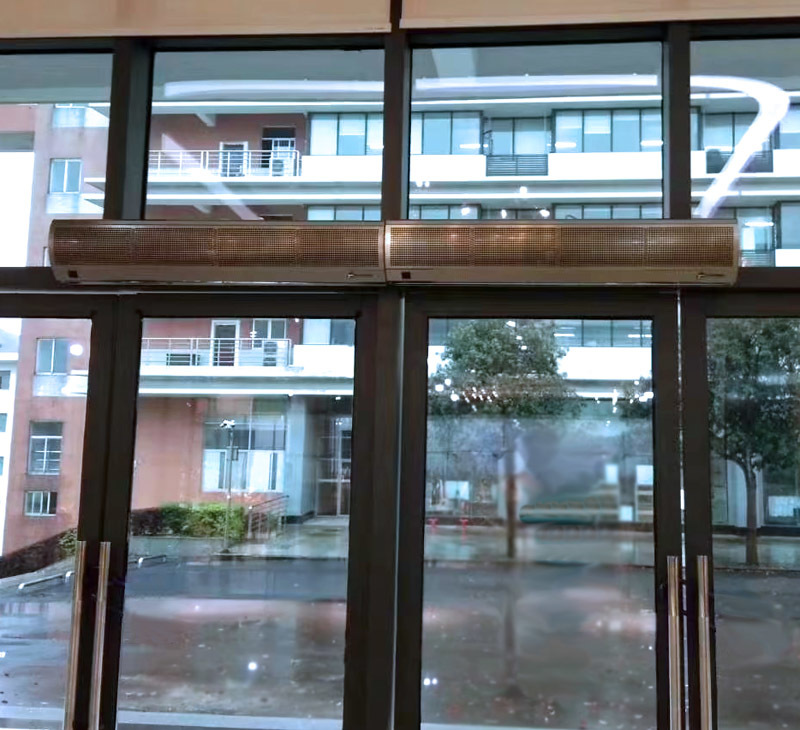

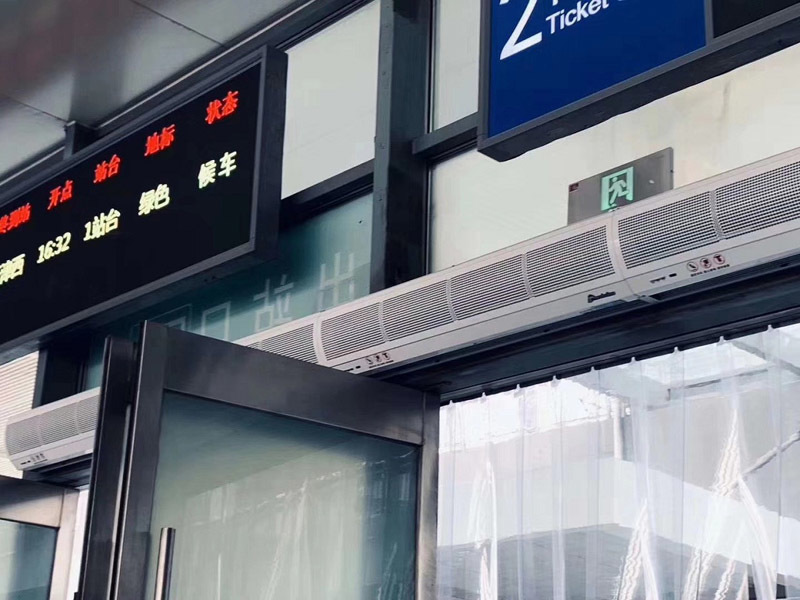

Theodoor Air Curtain is installed above entryways of stores, restaurants, hotels, and other commercial spaces. It effectively isolates indoor and outdoor environments, maintaining temperature and humidity levels. Particularly useful in air-conditioned spaces, it helps conserve energy by reducing the workload on refrigeration equipment. Additionally, the air curtain prevents the intrusion of dust, pests, and harmful fumes from outside, maintaining a comfortable and clean indoor environment.
