Explosion-proof IP54 Theodoor Air Curtain with 380V/3PH/50Hz Power and Ex dbIIC T4Gb Certification for Door Ventilation

50
MOQ
$399
قیمت
Explosion-proof IP54 Theodoor Air Curtain with 380V/3PH/50Hz Power and Ex dbIIC T4Gb Certification for Door Ventilation
امکانات گالری توضیحات محصول درخواست نقل قول
امکانات
مشخصات
نوع نصب: دیواره درب
نوع موتور: موتور
وزن: 25 کیلوگرم
منبع تغذیه: 380V/3PH/50Hz
عایق انفجار: IP54 ، سابق DBIIC T4GB
مادی: بدنه فولادی گالوانیزه
ارتفاع نصب: 3-3.5 متر
نوع فن: جریان متقاطع
ماده هواداری: فن فلزی
کنترل کردن: روشن/خاموش
محوطه موتور: محصور
حجم هوا: 2420-4280 m3/h
سرعت هوا: 16 متر در ثانیه
سطح سر و صدا: 68-72 دسی بل

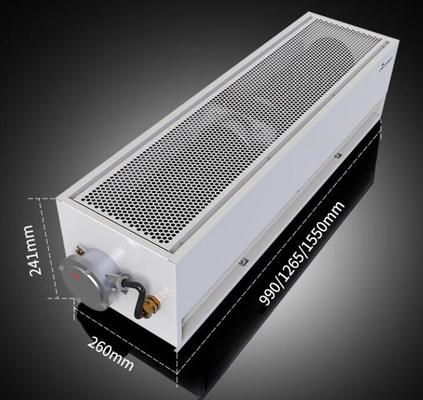

ابعاد مدل: 990x241x260 تا 1550x241x260 میلی متر
برجسته کردن:

IP54 Air Curtain,380V/3PH/50Hz Door Ventilation,Ex dbIIC T4Gb Theodoor Air Curtain

,

380V/3PH/50Hz Door Ventilation

,

Ex dbIIC T4Gb Theodoor Air Curtain
اطلاعات اولیه
محل منبع: گوانگدونگ ، چین
نام تجاری: Theodoor
شماره مدل: FB-15
پرداخت
توضیحات محصول
Commercial and Industrial Explosion-proof IP54 Air Curtain Door Ventilation

An efficient partner for air conditioning systems, maintaining indoor cool air while creating an invisible barrier that preserves clean, fresh air in indoor environments.

Key Features
  • Explosion-proof construction: IP54 protection level with explosion-proof terminal box and certified pure copper motor (8000+ hours of lab testing without failure)
  • High safety rating: Explosion-proof mark Ex dbⅡC T4Gb - superior to standard Ex dbⅡB T4 rated machines
  • Wide application: Suitable for Zone 1 & 2 explosive gas environments including biopharmaceutical facilities, chemical plants, laboratories, gas stations, and warehouses
  • Durable construction: Galvanized steel with powder coating for long-lasting performance without deformation
  • Powerful airflow: Metal cross-flow fan wheel delivers high air volume, stable output, and superior isolation
Technical Specifications
Model Size (mm) Volt./Freq. Motor Power (W) Air Volume (m³/h) Air Speed (m/s) Noise (dB) N.W (kg)
FB-1509A 990x241x260 380v~ 50Hz 320 2420 16 68 20
FB-1512A 1260x241x260 450 3350 70 25
FB-1515A 1550x241x260 590 4280 72 31
Product Images

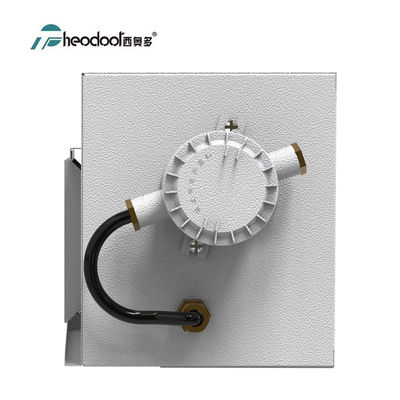

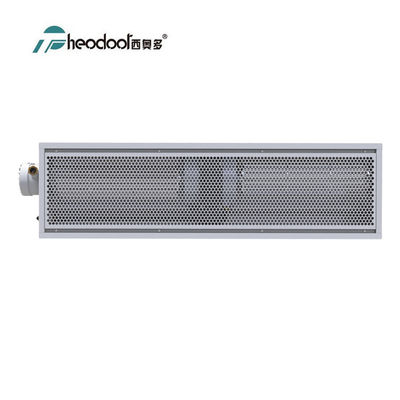

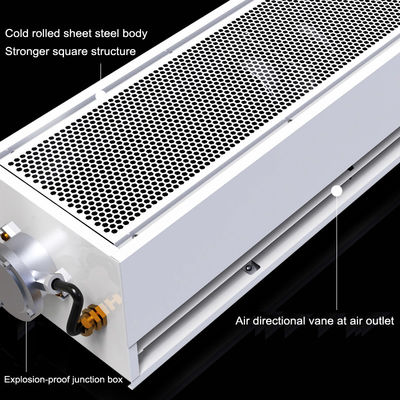

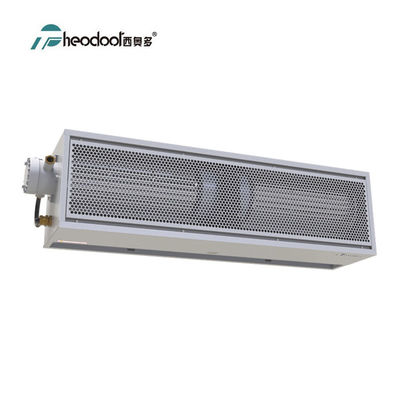

Explosion-proof IP54 Theodoor Air Curtain with 380V/3PH/50Hz Power and Ex dbIIC T4Gb Certification for Door Ventilation 0
Explosion-proof IP54 Theodoor Air Curtain with 380V/3PH/50Hz Power and Ex dbIIC T4Gb Certification for Door Ventilation 1
Explosion-proof IP54 Theodoor Air Curtain with 380V/3PH/50Hz Power and Ex dbIIC T4Gb Certification for Door Ventilation 2
Explosion-proof IP54 Theodoor Air Curtain with 380V/3PH/50Hz Power and Ex dbIIC T4Gb Certification for Door Ventilation 3
Explosion-proof IP54 Theodoor Air Curtain with 380V/3PH/50Hz Power and Ex dbIIC T4Gb Certification for Door Ventilation 4
Packaging & Shipping
Explosion-proof IP54 Theodoor Air Curtain with 380V/3PH/50Hz Power and Ex dbIIC T4Gb Certification for Door Ventilation 5
Manufacturer Information
Explosion-proof IP54 Theodoor Air Curtain with 380V/3PH/50Hz Power and Ex dbIIC T4Gb Certification for Door Ventilation 6
Explosion-proof IP54 Theodoor Air Curtain with 380V/3PH/50Hz Power and Ex dbIIC T4Gb Certification for Door Ventilation 7
Explosion-proof IP54 Theodoor Air Curtain with 380V/3PH/50Hz Power and Ex dbIIC T4Gb Certification for Door Ventilation 8

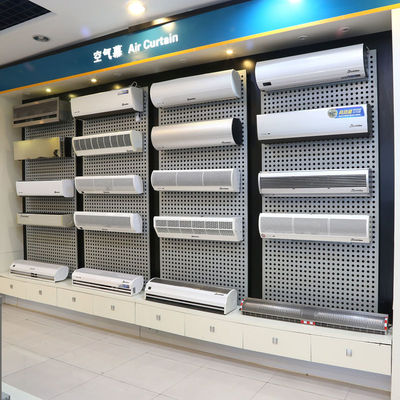

Theodoor Industrial - National Craftsman, Originality Manufacturing

Theodoor Industrial Park spans 30,000 square meters with advanced equipment and detection instruments. Our facility features automated assembly lines, CNC production, and implements ERP management, 6S management, and strict quality control systems.

We focus on design aesthetics, performance, material testing, R&D, and technology. Using new security and environmentally friendly materials with advanced manufacturing techniques, we ensure durable, safe products that perform in various conditions.

With over 80 national invention, utility model, and design patents, Theodoor leads industry quality and performance upgrades. Our certifications include ISO9001, ISO14001, CCC, CE, CB, ROHS, ERP, UL, SASO, INMETRO and SAA. For 18+ years, we've created quality products worldwide, evolving from "MADE IN CHINA" to "CREATED IN CHINA".
