Theodoor Air Curtain Door Fan with 2000m³/h Airflow 115 VAC Operating Voltage and 36 40 48 60 Inches Sizes Available

10
MOQ
$299
قیمت
Theodoor Air Curtain Door Fan with 2000m³/h Airflow 115 VAC Operating Voltage and 36 40 48 60 Inches Sizes Available
امکانات گالری توضیحات محصول درخواست نقل قول
امکانات
مشخصات
ولتاژ عملیاتی: 115 VAC
نوع نصب: دیوار / پنجره
جریان هوا: 2000m³/h
وزن: 15 کیلوگرم
نوع فن: نوع جریان متقاطع
سرعت: 2 سرعت
ولتاژ: 110V ~ 120V/60Hz
مواد روکش: فولاد با روکش پودر یا SS304
سرعت هوا: 10-13 متر بر ثانیه
نیروی ورودی: 380W (سلام) ، 300W (کم)
حجم هوا: 2000m³/h (HI) ، 1600 متر در ساعت (کم)
اندازه: 900x220x260mm (FM-1509SA1)
نوع موتور: محافظ بیش از حد
نوع کنترل: کنترل از راه دور یا سوئیچ لمسی
عمل مداوم: 5000 ساعت
برجسته کردن:

2000m³/h Airflow Theodoor Air Curtain,115 VAC Operating Voltage Door Fan,36 40 48 60 Inches Sizes Available Air Curtain

,

115 VAC Operating Voltage Door Fan

,

36 40 48 60 Inches Sizes Available Air Curtain
اطلاعات اولیه
محل منبع: گوانگدونگ ، چین
نام تجاری: Theodoor
پرداخت
توضیحات محصول
Titan Air Curtain For Door With UL Listed
Key Features
  • Compact design with metal cover for easy installation and simple maintenance
  • Optimized fan wheel provides stable, even airflow with large volume and low noise performance
  • Reliable motor design includes overheating protector and 5000+ hours of continuous operation

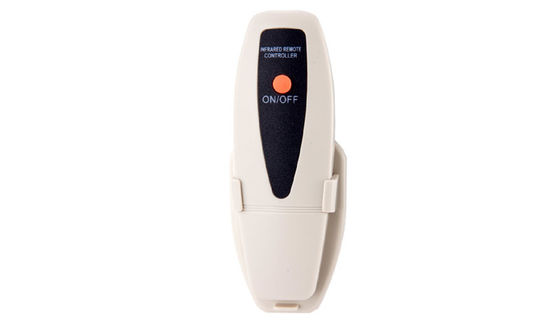

  • Remote control or touch switch for adjustable high/low air velocity (10-13m/s)
  • Ideal for cafeterias, bakeries, restaurants, retail shops, department stores, and sports centers
Technical Specifications
Model Voltage (V/HZ) Input Power (W) Air Volume (m³/h) Air Speed (m/s) Size (mm)
FM-1509SA1 120/60 380 (Hi)
300 (Low)		 2000 (Hi)
1600 (Low)		 13 (Hi)
10 (Low)		 900×220×260
FM-1510SA1 120/60 400 (Hi)
320 (Low)		 2300 (Hi)
1800 (Low)		 13 (Hi)
10 (Low)		 1000×220×260
FM-1512SA1 120/60 530 (Hi)
450 (Low)		 2800 (Hi)
2200 (Low)		 13 (Hi)
10 (Low)		 1200×220×260
FM-1515SA1 120/60 690 (Hi)
610 (Low)		 3600 (Hi)
2800 (Low)		 13 (Hi)
10 (Low)		 1500×220×260
Theodoor Air Curtain Door Fan with 2000m³/h Airflow 115 VAC Operating Voltage and 36 40 48 60 Inches Sizes Available 0 Theodoor Air Curtain Door Fan with 2000m³/h Airflow 115 VAC Operating Voltage and 36 40 48 60 Inches Sizes Available 1 Theodoor Air Curtain Door Fan with 2000m³/h Airflow 115 VAC Operating Voltage and 36 40 48 60 Inches Sizes Available 2

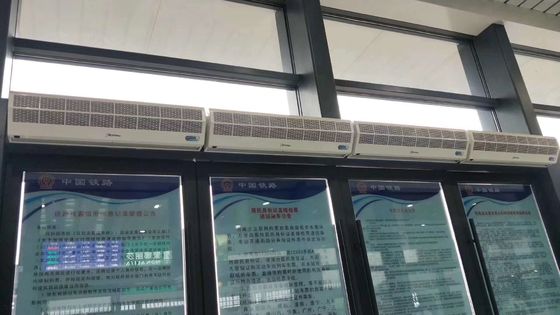

What is an Air Curtain?
Theodoor air curtains are installed above entryways in stores, restaurants, hotels, and other commercial spaces. They effectively isolate indoor and outdoor environments, maintaining temperature and humidity levels while preventing dust, pests, and harmful fumes from entering. Particularly valuable in air-conditioned spaces, they help conserve energy by reducing the workload on refrigeration systems while maintaining a comfortable indoor climate.
Theodoor Air Curtain Door Fan with 2000m³/h Airflow 115 VAC Operating Voltage and 36 40 48 60 Inches Sizes Available 3
Packaging & Shipping
Theodoor Air Curtain Door Fan with 2000m³/h Airflow 115 VAC Operating Voltage and 36 40 48 60 Inches Sizes Available 4
Our Services
  • OEM and ODM solutions available
  • Custom label and box design services
  • Comprehensive shipping arrangements
  • After-sales spare parts support
With over 22 years of manufacturing and export experience, we offer more than 100 air curtain models suitable for various environments. Our professional R&D team utilizes advanced machinery and technology to ensure product performance and reliability. We maintain strict quality control with 100% product testing, delivering long-life, high-reliability air curtains that provide excellent cost savings through energy efficiency and durability.
Company Information
Founded in 2002, Theodoor operates from a 30,000 square meter facility in Guangzhou's Sino-Singapore Knowledge City. Our modern production facilities feature advanced equipment and testing instruments to ensure product precision and reliability. We hold numerous patents and maintain certifications including ISO9001, ISO14001, CCC, CE, CB, ROHS, ERP, UL, SASO, INMETRO and SAA.
Theodoor Air Curtain Door Fan with 2000m³/h Airflow 115 VAC Operating Voltage and 36 40 48 60 Inches Sizes Available 5 Theodoor Air Curtain Door Fan with 2000m³/h Airflow 115 VAC Operating Voltage and 36 40 48 60 Inches Sizes Available 6 Theodoor Air Curtain Door Fan with 2000m³/h Airflow 115 VAC Operating Voltage and 36 40 48 60 Inches Sizes Available 7
