خانه /محصولات/پرده هوا صنعتی/Industrial Air Curtain with 380-400V Power Supply 1 Year Warranty and Remote Control for Energy Efficient Heating

Industrial Air Curtain with 380-400V Power Supply 1 Year Warranty and Remote Control for Energy Efficient Heating

50
MOQ
$399
قیمت
Industrial Air Curtain with 380-400V Power Supply 1 Year Warranty and Remote Control for Energy Efficient Heating
امکانات گالری توضیحات محصول درخواست نقل قول
امکانات
مشخصات
نوع نصب: دیوار / پنجره
نوع موتور: موتور
وزن: 30 کیلوگرم
نوع فن: طرفدار گریز از مرکز
مواد فن: پلاستیک
سرعت: 2 سرعت
نوع کنترل: دکمه از راه دور+
سطوح قدرت: 1 سطح قدرت
عنصر گرمایش: گرمکن PTC
منبع تغذیه: 380-400V~50/60Hz
اندازه محصول: 900x350x245 میلی متر (بسته به مدل متفاوت است)
قدرت موتور: <410 وات (بر اساس مدل متفاوت است)
قدرت بخاری: 12-24 کیلووات (بر اساس مدل متفاوت است)
سرعت هوا: 10-12 M/S
سطح سر و صدا: 53-60 دسی بل (بر اساس مدل متفاوت است)
برجسته کردن:

380-400V Power Supply Industrial Air Curtain,1 Year Warranty Centrifugal Hot Wind Air Curtain,Remote Control Electric Heating Air Curtain

,

1 Year Warranty Centrifugal Hot Wind Air Curtain

,

Remote Control Electric Heating Air Curtain
اطلاعات اولیه
محل منبع: گوانگدونگ ، چین
نام تجاری: Theodoor
پرداخت
توضیحات محصول

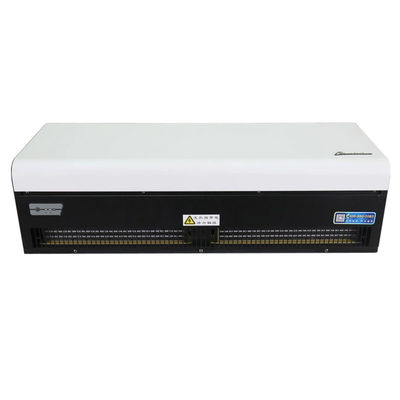

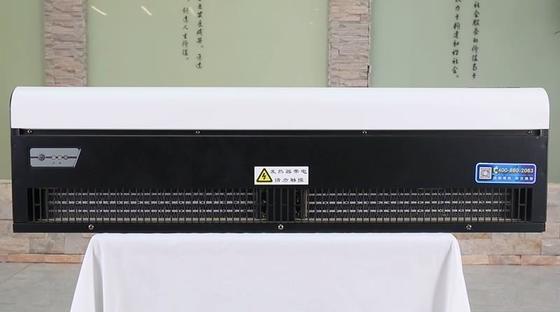

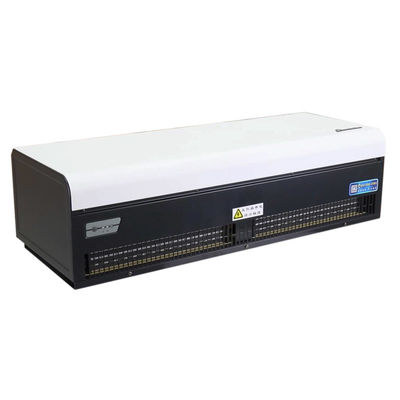

Electric Heating S3 Series Centrifugal Hot Wind Heated Air Curtains for Doors 3-3.5m
Product Overview
The S3 Series Electric Heating Air Curtain features seasonal versatility with remote-controlled cooling (normal air) or heating options. Its durable all-metal outer cover provides excellent fireproof performance, while the top inlet and bottom wind outlet design ensures efficient airflow.
Key Features
  • High-efficiency PTC heater with long lifespan and high conversion efficiency
  • Safety-focused design with no light fire and non-oxidation
  • Quiet centrifugal fan wheel with optimized motor for strong airflow
  • Triple security protection: Thermal protector, varistor, and fuse
  • Automatic postpone safety protection when power is interrupted
Technical Specifications
MODEL Product Size (mm) Volt. (V ~ Hz) Motor Power (W) Heater Power (KW) Air Speed (M/S) Air Volume (m³/h) Net Weight (Kg) Noise Level (dB)
RM-4009S-3D/Y-1 900x350x245 380v ~50Hz <410 12 10-12 1980 22 53-55
RM-4012S-3D/Y-1 1200x350x245 <520 16 - - 2690 28 54-56
RM-4015S-3D/Y-1 1500x350x245 <670 20 - - 3390 35.5 56-58
RM-4018S-3D/Y-1 1800x350x245 <780 22 - - 3680 41 58-60
RM-4020S-3D/Y-1 2000x350x245 <780 24 - - 3680 44 58-60
Industrial Air Curtain with 380-400V Power Supply 1 Year Warranty and Remote Control for Energy Efficient Heating 0
Industrial Air Curtain with 380-400V Power Supply 1 Year Warranty and Remote Control for Energy Efficient Heating 1
Industrial Air Curtain with 380-400V Power Supply 1 Year Warranty and Remote Control for Energy Efficient Heating 2
Applications
The S3 Series Air Curtain is designed for installation above entryways of stores, restaurants, hotels, and other commercial spaces. It effectively isolates indoor and outdoor convection to maintain temperature and humidity levels. Particularly effective when used with air conditioning systems to preserve indoor environments and reduce energy consumption. Additionally prevents dust, pests, and harmful fumes from entering, maintaining a comfortable indoor climate.
Commercial Use
Supermarkets, shopping malls, department stores, small shops, hotels, restaurants, hospitals, schools, movie theaters, fitness centers, clubs, bars, cafes, barbershops, waiting rooms, subway stations, commercial buildings, museum entrances 		Industrial Use
Factories, workshops, warehouses, spinning mills, frozen goods facilities, paint factories, large industrial spaces
Industrial Air Curtain with 380-400V Power Supply 1 Year Warranty and Remote Control for Energy Efficient Heating 3
Packaging & Shipping
Industrial Air Curtain with 380-400V Power Supply 1 Year Warranty and Remote Control for Energy Efficient Heating 4
Frequently Asked Questions
What are the main functions of the Air Curtain?
  • Dust-proof and insect prevention
  • Odor isolation
  • Energy saving
  • Comfortable heating
How to select the suitable air curtain?
Consider these factors when selecting an air curtain:
  • Application requirements
  • Door height and width
  • Outside wind conditions
  • Building static pressure
  • Door structure
  • Ambient temperature
  • Air curtain size and design
  • Noise level requirements
  • Power consumption
